鋼材冷拔機鏈

http://m.79ll.cn/uploadfiles/211.149.195.244/webid148/source/201507/20318.jpg

鋼材冷拔機鏈
東傳全國咨詢熱線：
0519-88710908

詳細描述：

鋼材冷拔機鏈適用領域：鋼廠、制管廠、冷拉型鋼廠。主要用于冷拔拉車的牽引。適用于有強烈沖擊的載荷，低速工況下承載。

該鏈條由鏈板和銷軸兩部分組成，結構較為簡單，合理。我們選用了有很好抗疲勞性的彈簧鋼材質材料做鏈板，鏈板經過整體調質后精鏜兩節距孔，確保每片鏈板的節距和孔徑的尺寸，使鏈條運行時每片鏈板都同時受力。銷軸也經過整體調質后精車各部外徑，然后再進行表面高頻處理，提高銷軸的表面硬度，再由磨床精磨各部外徑，使銷軸表面具有很好的光潔度，提高了鏈條的使用周期。

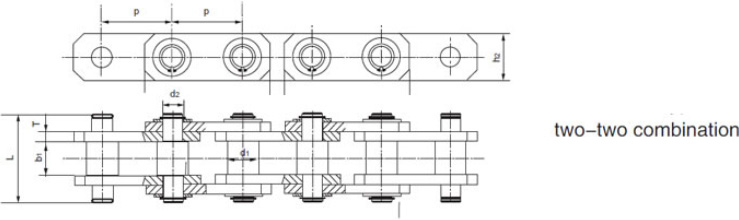

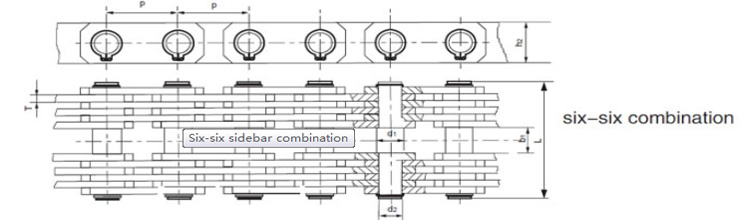

規格參數圖

Chain no.	Pitch P (mm)	Inner width of inner link b1 (max.) (mm)	Diameter of pin (max.) (mm)		Length of pin L (max.) (mm)	Height of sidebar h2 (max.) (mm)	Thickness of sidebar T (mm)	Combination of sidebars n*n	Allowed working tension (KN)
Chain no.	Pitch P (mm)	Inner width of inner link b1 (max.) (mm)	d2 (max.) (mm)	d1 (max.) (mm)	Length of pin L (max.) (mm)	Height of sidebar h2 (max.) (mm)	Thickness of sidebar T (mm)	Combination of sidebars n*n	Allowed working tension (KN)
P100-10T	100	47	30	39.5	121	63.5	12.7	2*2	10
P100-15T	100	50	40	45	150	80	18	2*2	15
P103.2-10T	103.2	52	32	46	142	70	16	2*2	10
P103.2-10T	103.2	55	36	44	137	80	16	2*2	10
P120-10T-A	120	53	35	39.5	176	75	12	4*4	10
P120-10T-B	120	53	35	40	169	75	12	4*4	10
P120-10T-C	120	50	35	49	171	75	12	4*4	10
P120-10T-D	120	53	35	40	192	75	14	4*4	10
P120-15T	120	56	42	54	179	100	12	4*4	15
P125-10T	125	52	25	30	122	60	10	2*2	10
P125-20T	125	60	40	49	186	100	12	4*4	20
P134-10T	134	50	44	49.5	175	80	12	4*4	10
P135	135	50	45	49.5	175	75	12	4*4
P140	140	64.5	45	54.5	184.5	100	12	4*4
P140-10T	140	50	45	54	148	100	18	2*2	10
P140-15T-A	140	50	35	44.5	158	80	10	4*4	15
P140-15T-B	140	65	55	63	192	120	12	4*4	15
P140-15T-C	140	75	55	64	216	120	14	4*4	15
P140-20T-A	140	68	48	65	190.6	122	12	4*4	20
P140-20T-B	140	80	55	64.5	221	120	14	4*4	20
P140-5T	140	53	38	44	159	75	10	4*4	5
P148-10T-A	148	70	50	59.5	176	100	10	4*4	10
P148-10T-B	148	70	55	69.5	176	100	10	4*4	10
P148-15T	148	80	60	69.5	203	100	12	4*4	15
P150-10T	150	60	45	50	215	95	16	4*4	10
P150-20T	150	70	45	50	195	100	12	4*4	20
P154-15T	154	52	50	59	176	100	12	4*4	15
P154-20T-A	154	65	50	59	190	100	12	4*4	20
P154-20T-B	154	65	50	59	205	100	14	4*4	20
P160	160	60	55	59	192	100	12	4*4
P160-20T	160	68	55	60	210	120	14	4*4	20
P178-20T	178	84	60	88.5	213	120	12	4*4	20
P180-10T-A	180	60	40	49	186	100	12	4*4	10
P180-10T-B	180	66	45	54	192	90	12	4*4	10
P180-10T-C	180	52	38	44	178	100	12	4*4	10
P180-10T-D	180	60	38	44	182	100	12	4*4	10
P180-10T-E	180	52	38	44	182	85	12	4*4	10
P180-10T-F	180	52	40	44	178	100	12	4*4	10
P180-10T-G	180	52	40	50	172	90	12	4*4	10
P180-10T-H	180	60	45	49	184	100	12	4*4	10
P180-10T-I	180	60	45	50	180	100	12	4*4	10
P180-20T-A	180	70	60	69	227	120	16	4*4	20
P180-20T-B	180	70	60	70	227	120	16	4*4	20
P180-20T-C	180	68	60	69	210	120	14	4*4	20
P180-20T-D	180	70	60	68	227	120	16	4*4	20
P180-20T-E	180	70	60	68	230	120	16	4*4	20
P180-20T-F	180	66	60	69	223	120	16	4*4	20
P180-20T-G	180	66	60	69	223	120	16	4*4	20
P180-20T-H	180	66	60	69.5	223	120	16	4*4	20

Chain no.	Pitch P (mm)	Inner width of inner link b1 (max.) (mm)	Diameter of pin (max.) (mm)		Length of pin L (max.) (mm)	Height of sidebar h2 (max.) (mm)	Thickness of sidebar T (mm)	Combination of sidebars n*n	Allowed working tension (KN)
Chain no.	Pitch P (mm)	Inner width of inner link b1 (max.) (mm)	d2 (max.) (mm)	d1 (max.) (mm)	Length of pin L (max.) (mm)	Height of sidebar h2 (max.) (mm)	Thickness of sidebar T (mm)	Combination of sidebars n*n	Allowed working tension (KN)
P180-20T-I	180	66	60	70	226	120	16	4*4	20
P180-20T-J	180	80	60	70	241	120	16	4*4	20
P180-20T-K	180	65	60	69.5	236	120	18	4*4	20
P180-20T-L	180	67	60	68	241	120	18	4*4	20
P180-30T-A	180	66	60	70	223	120	16	4*4	30
P180-30T-B	180	70	65	78	200	120	12	4*4	30
P180-30T-C	180	82	60	69.5	273	120	20	4*4	30
P180-40T-A	180	66	60	68	223	120	16	4*4	40
P180-40T-B	180	80	65	69.5	236	130	16	4*4	40
P180-45T	180	78.4	60	69.5	236.4	120	16	4*4	45
P180-50T	180	68	60	69	243	120	18	4*4	50
P190-30T	190	66	70	80	242	120	16	4*4	30
P190-40T	190	92	70	80	326	120	16	6*6	40
P190-45T	190	75	60	70	264	120	20	4*4	45
P200-40T	200	85	65	74	240	130	16	4*4	40
P200-45T-A	200	90	70	79	300	140	20	4*4	45
P200-45T-B	200	85	65	73	261	130	18	4*4	45
P200-45T-C	200	85	65	74.5	261	130	18	4*4	45
P200-45T-D	200	85	65	74.5	277	130	20	4*4	45
P200-45T-E	200	85	60	73	275	120	20	4*4	45
P200-45T-F	200	85	65	73.5	277	120	20	4*4	45
P200-45T-G	200	90	60	69	287	130	20	4*4	45
P220-35T	220	90	70	90	296	140	20	4*4	35
P220-45T	220	80	70	78	272	130	20	4*4	45
P220-65T-A	220	90	70	78	297	140	22	4*4	65
P220-65T-B	220	100	75	84	290	160	20	4*4	65
P220-75T	220	100	75	84	307	150	22	4*4	75
P250	250	100	70	80	342	150	25	4*4
P250-100T-A	250	100	85	98	317	200	22	4*4	100
P250-100T-B	250	100	85	100	305	200	22	4*4	100
P250-100T-C	250	101	80	88	339	160	25	4*4	100
P250-120T	250	110	85	95	361	190	18	6*6	120
P250-65T-A	250	100	75	84	304	150	22	4*4	65
P250-65T-B	250	100	75	84	308	150	22	4*4	65
P250-65T-C	250	100	75	84	307	150	22	4*4	65
P250-65T-D	250	100	75	85	306	150	22	4*4	65
P250-65T-E	250	100	75	84	330	150	25	4*4	65
P250-65T-F	250	100	75	88	332	150	25	4*4	65
P250-75T-A	250	100	70	79.5	327	150	23.2	4*4	75
P250-75T-B	250	100	70	79.5	342	150	25	4*4	75
P250-80T	250	108	70	80	382	150	20	6*6	80
P250-75T	260	100	90	108	312	180	22	4*4	75
P280-100T	280	115	100	118	351	200	25	4*4	100
P300-120T	300	125	85	98	425	180	22	6*6	120
P300-150T-A	300	145	100	108	425	200	20	6*6	150
P300-150T-B	300	120	100	118	406	200	20	6*6	150
P300-150T-C	300	115	100	118	401	220	30	4*4	150
P80-10T	80	36	30	35	142	60	10	4*4	10
